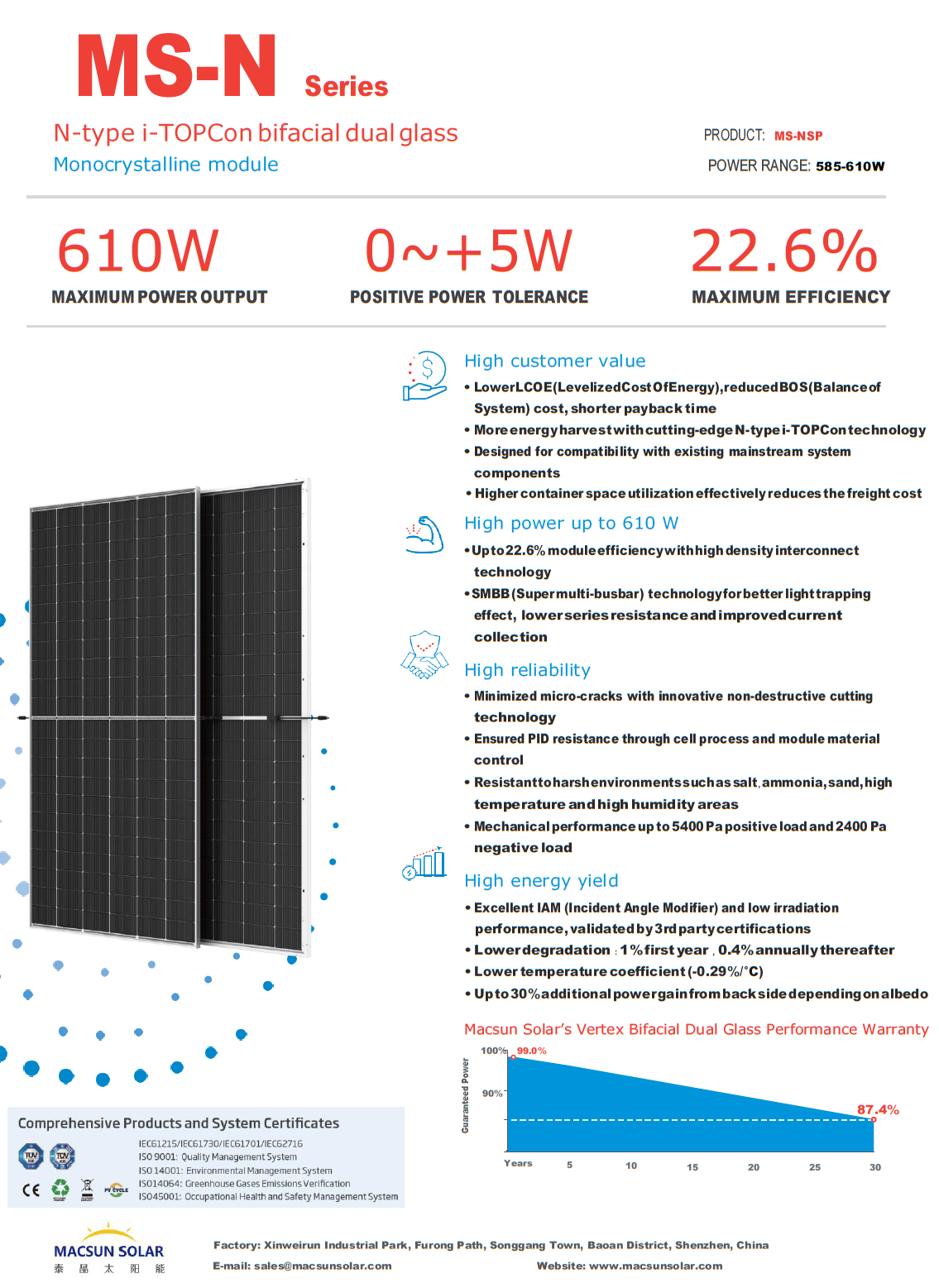

		Product Name： 585W-610W N type Topcon bifacial dual glass Monocrystalline solar modules
		High customer value • Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time • More energy harvest with cutting-edge N-type i-TOPCon technology • Designed for compatibility with existing mainstream system components • Higher container space utilization effectively reduces the freight cost


		Download： Right click the mouse "target save as" Download

Details

High power up to 610 W

• Up to 22.6% module efficiency with high density interconnect technology

• SMBB (Super multi-busbar) technology for better light trapping effect, lower series resistance and improved current collection

High reliability

• Minimized micro-cracks with innovative non-destructive cutting technology

• Ensured PID resistance through cell process and module material control

• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas

• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

High energy yield

• Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications

• Lower degradation：1% first year，0.4% annually thereafter

• Lower temperature coefficient (-0.29%/°C)

• Up to 30% additional power gain from back side depending on albedo
