Solar Traffic Lighting System

solar led traffic signal system：
We have now introduce solar powered traffic signals using led based signal lights, instead of conventional incandescent lamps, As These lights consumes 90% less energy it makes system practically viable to operate Traffic signals maintenance free on eco-friendly Solar Power and without electricity connections. These Systems were custom designed and were manufactured and tested to stringent China Standards.

1>>Features: Solar Traffic System are Use solar panel, wireless control system, battery, 12V traffic light
  1.solar modules are fully encapsulated to resist harsh weather conditions
  2.Low voltage load disconnect
  3.Sealed,lead-acid battery designed for deep discharge cycling
  4.NEC code compliant over-current protection and safety disconnect
  5.Temperature compensated battery charging
  6.Corrosion resistant control/batter enclosure
  7.Installation,operation & maintenance documentation
  8.Solid state electronics for improved efficiency and reliability
  9.Pre-assembled, pre-wired systems minimize field installation time & eliminate wiring errors
  10.Complete systems reduce specifying and buying time
  11.Quality components assure long system life
  12.Full system and performance warranty available on prepackaged systems

2>> CONTROLLER of solar traffic signal light:
     The controller feature full protective functions for overcharge, low battery state of charge (SOC), over current, over-voltage and over temperature. Status LEDs display battery SOC and system status. In addition, the control algorithm utilizes voltage, temperature and amp-hour measurements to enable an accurate determination of the SOC, the most critical system parameter, and adjusts charging current and voltage for the temperature, capacity and age of the battery.

3>>BATTERY of solar traffic signal light:
    Completely sealed, valve regulated lead acid (VRLA); Absorbed glass mat (AGM) technology; Maintenance free-never wide operating temperatures from -40F (-40C) to 160F (72C).

 4>>Solar Energy and Technical Parameter(solar traffic signal light)：

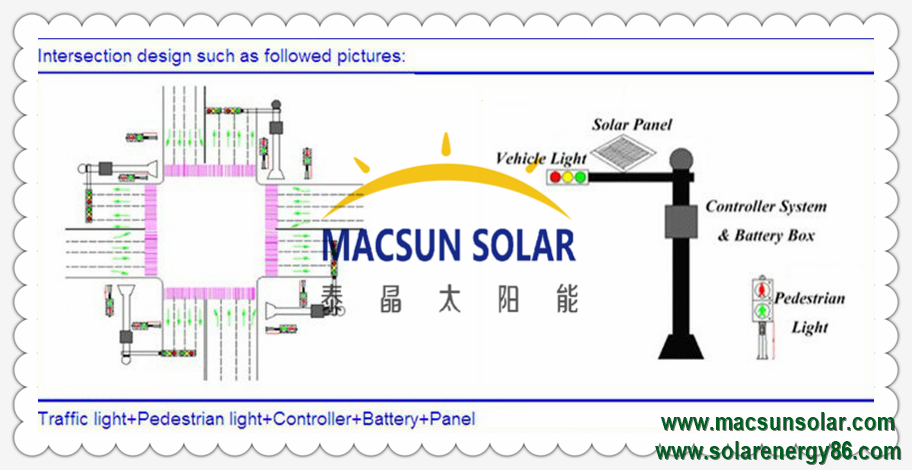

5>>The Total System Consists of :

1. wireless solar traffic controller, 1 mast and 4 slaves

2. 200mm vehicle traffic light,

3. 200mm pedestrian traffic light,

4. 45W solar panel with solar regulator

5. 65Ah solar battery
