Model: 200W Horizontal Wind Turbines MS-EW200
Rated power(W): 200 Rated voltage(V): 12/24 Rated current (A): 16/8.3 Rotor diameter(m): 1.1 Start-up wind speed (m/s):2.5

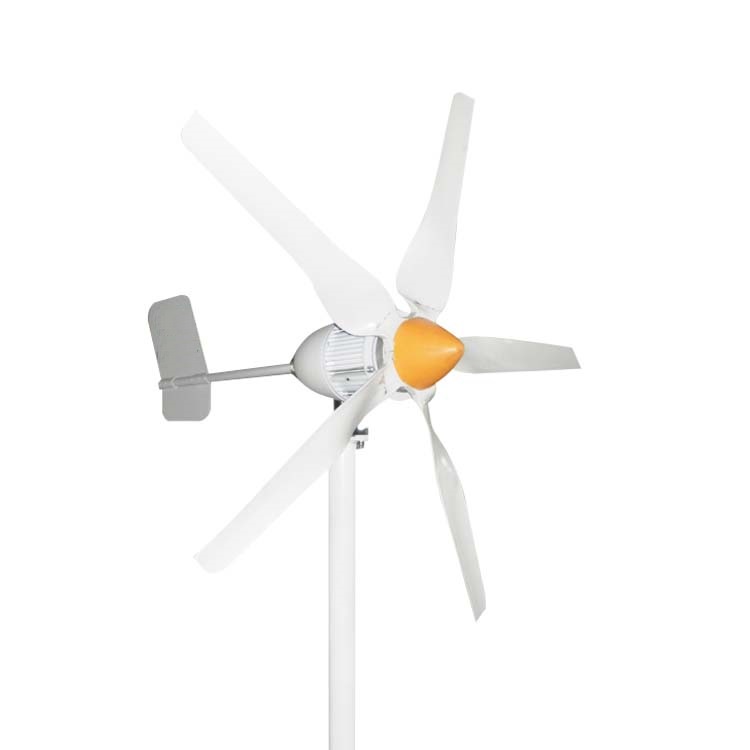

200W Horizontal Wind Turbines MS-EW200
Technical Parameter
Model
MS-EW200
Rated power(W)
200
Rated voltage(V)
12/24
Rated current(A)
16/8.3
Rotor diameter(m)
1.1
Start-up wind speed (m/s)
2.5
Rated wind speed(m/s)
12
Survival wind speed(m/s)
45
Rotating direction
Clockwise
Blade NO.( piece)
5
Blade material
nylon
Tower height (m)
6
Packing size(mm)
1470*470*230
Net weight(KG)
18

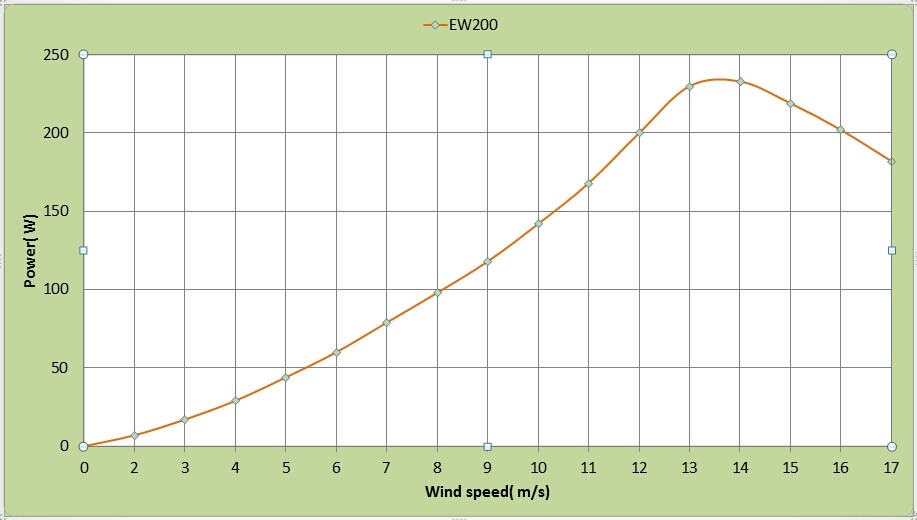

2. Power curve

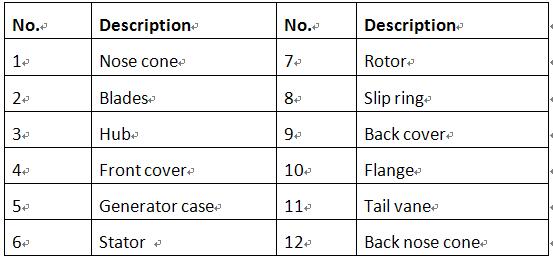

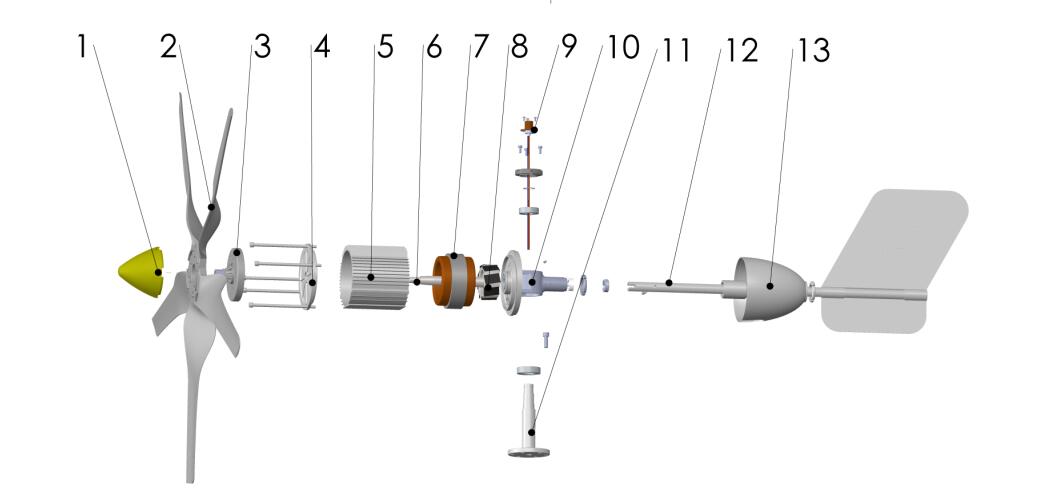

3. Structure

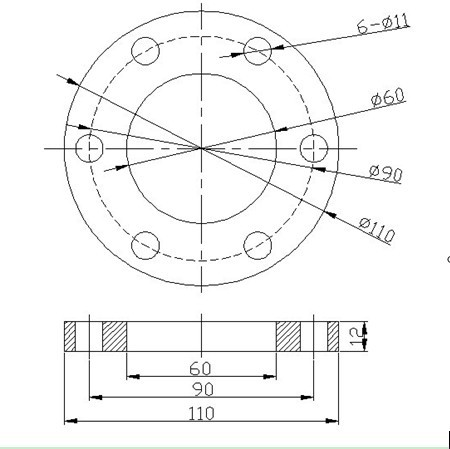

4. Flang Drawing
