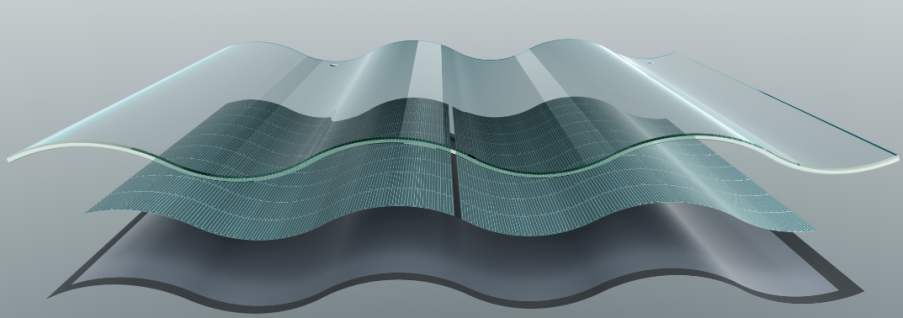

Double-Glass CIGS Thin Film Solar Tile series

It is gleaming and with graceful curve, inheriting the beauty of glaze. Thin- Film solar core technology will lead the fashion.

Double-Glass Triple-Arch MStile Standard Edition 30W

It suits to small architecture’s roof, satisfying your aesthetic sense. For example: Villas, houses, special-feature towns, etc.

Physical parameters:

product model：MS-TFTB-V1、MS-TFTG-V1

length：500mm

width：718mm

arch height：41mm

weight：10KG

color：black, gray

junction box：39*46*16.6 (mm) IP67

cable type：2.5mm solar cable 450 (+10/-0) mm

cable connector：MC4

Electrical parameters

chip type：CIGS

power：30W

short-circuit current：4A

open-circuit voltage：10.6V

current at PMPP：3.5A

voltage at PMPP：8.6V

Function grade

loading grade：2400Pa

waterproof grade：IP67

_re-proof grade：A

hail-proof grade：level 4 (ANSI FM 4473)

working temperature：-40°C to +85°C
