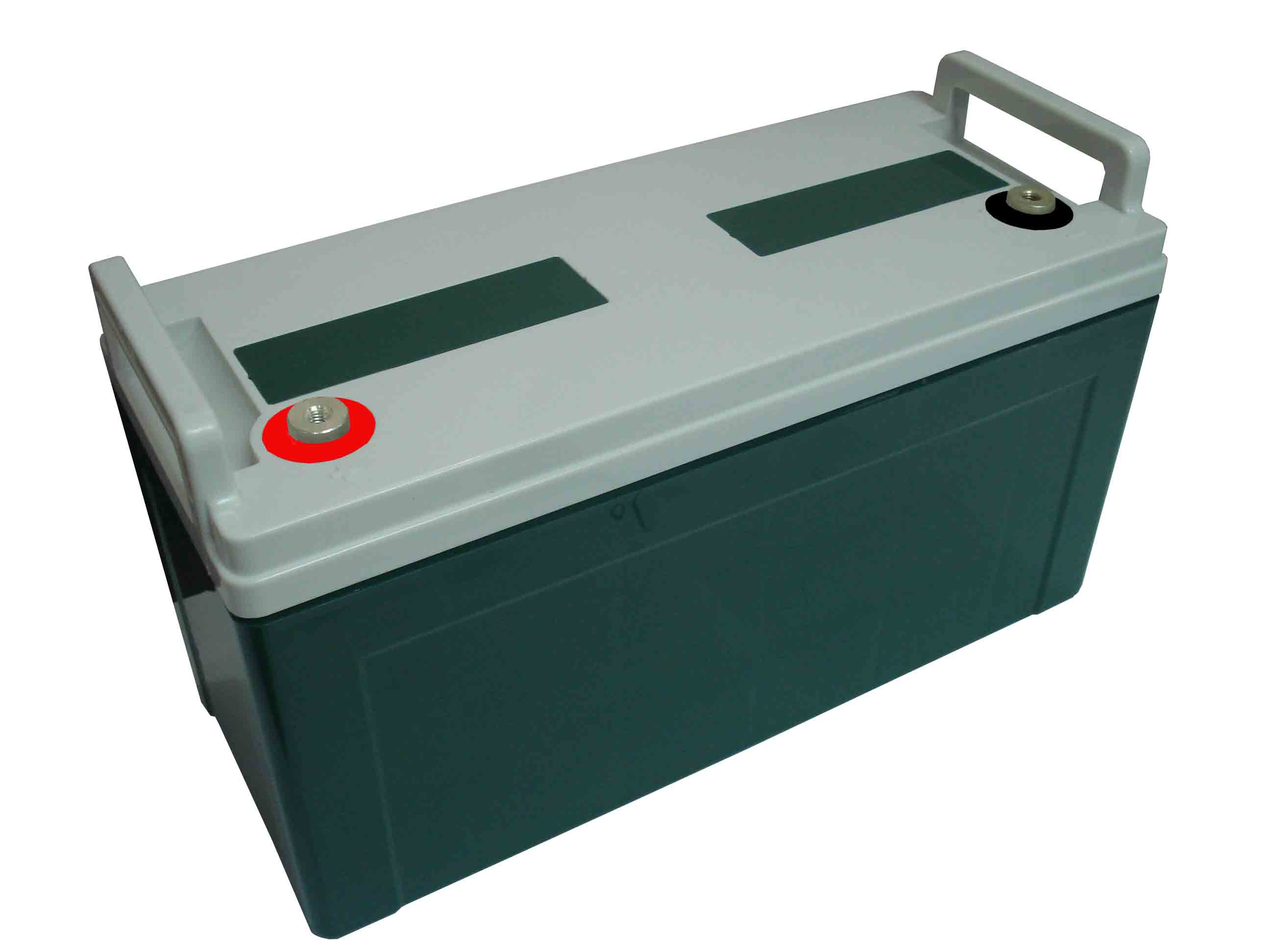

		Product Name： Gel Battery SP SERIES/ MS-SB3000-2 2V 3000Ah
		2V 3000AH Gel Battery Model No.: MS-SB3000-2 Wide operating temperature range from ‐25°C to 45°C Sealed and maintenance free operation Low self‐discharge rate and long shelf life (9 months at 25°C) ABS containers and covers No memory effect, thick flat plate with high Tin low Calcium alloy Absorptive Glass Mat Technology (AGM System) Safety valve installation for explosion proof Long Service Life, Float or Cyclic


		Download： Right click the mouse "target save as" Download

Details

Gel Battery SP SERIES/ MS-SB3000-2 2V 3000Ah

Applications:

Solar system and Wind system
Solar street light and solar garden light
Emergency lighting equipment
Fire alarm and security systems
Telecommunication equipment
Electric equipment and telemeter equipment

	Battery Model					MS-SB3000 / 2V3000Ah
	Capacity (25℃)		120Hr(30.0A,1.85V)			20Hr（153.0A,1.80V）				10Hr(300A,1.80V)

			3600Ah			3060Ah				3000Ah
			3600Ah			3060Ah				3000Ah

	Dimensions		Length			Width		Height		Total Height

			6963%mm			3403%mm		3303%mm		3403%mm
			6963%mm			3403%mm		3303%mm		3403%mm

	Approx Weight					172±3%KG

	Self Discharge					≤2% per month (25℃)

	Charge Voltage				Cycle Use					Float Use
	25℃
	25℃		2.36V(‐3.5mV/℃),max charge 450A							2.25V(‐3.5mV/℃)

General Features

Wide operating temperature range from ‐25°C to 45°C
Sealed and maintenance free operation
Low self‐discharge rate and long shelf life (9 months at 25°C)
ABS containers and covers
No memory effect, thick flat plate with high Tin low Calcium alloy
Absorptive Glass Mat Technology (AGM System)
Safety valve installation for explosion proof
Long Service Life, Float or Cyclic
