		Product Name： Tilted Single-axis Tracking System MS-PV-STT117
		PV Tilted Single-axis Tracking System MS-PV-STT117


		Download： Right click the mouse "target save as" Download

Details

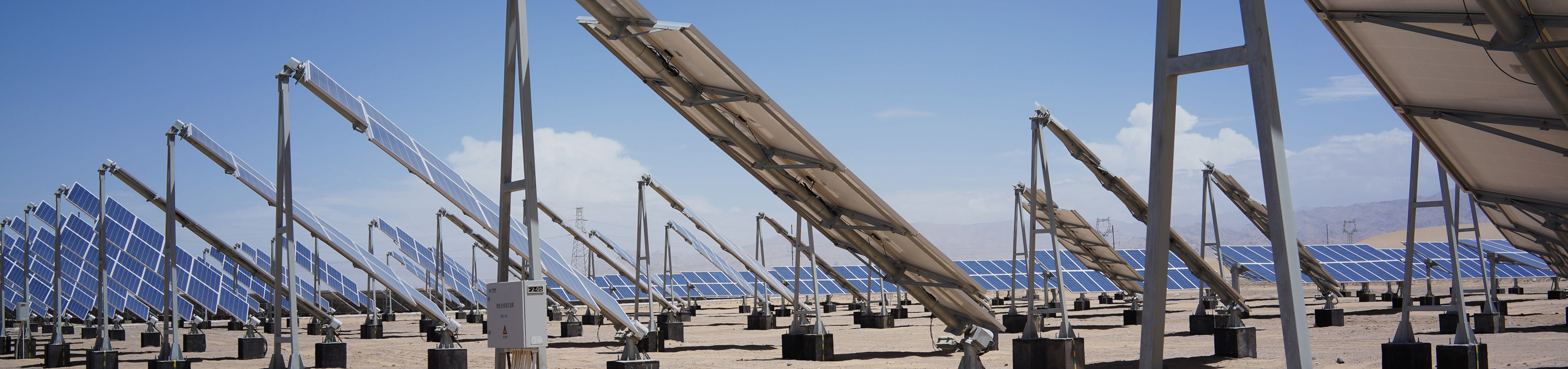

Tilted Single-axis Tracking System

Tracker Profile:

The modules of tilted single-axis trackers are installed at a certain tilt. It works on same principle as HSAT, keeping the axis of tube horizontal in north–south line and rotates the solar modules east to west throughout the day. These trackers are usually suitable in high latitude locations, but do not take as much land space as consumed by Vertical single axis tracker (VSAT). Therefore, it brings the advantages of VSAT in a horizontal tracker and minimizes the overall cost of solar project.

Product Characteristics

Single Axis Tilted Tracker
MS-PV-STT
Model	MS-PV-STT117
Array
Modules Assembly Area	117m2
Modules Assembly Arrangement	72 Modules
Modules Reference	260W-1650x991x40mm
Power Generation Capacity	18.72kW
Tracking
Tracking Accuracy	≤1°
Tilted Angle	10°to 35°depending on customer requirement
Tracking Altitude Angle	±45°
Tracking Principle	Algorithm + Inclinometer
Structure
Material	Hot Galvanized Steel
Electronic Control Cabinet	IP65,Weather Proof, Junction Connected
Max. Operating Wind Load	22m/s
Max. Wind Load at Stow Position	34m/s
Working Temperature	-40°C-60°C
System Life	≥25years
Motor
Motor Power	120w
Average Annual Power Consumption	≤32kWh
Controller Power Input	AC110V/AC220V
Certifications and Warranties
Certifications	CE,ISO-9001
Warranty	Material Part：10years
Warranty	Electronic Part：5years (Long Warranty can be purchased)

System Characteristics

Automatic Tracking

Independent Reset

Manual Control

Backtracking

Wind Speed Test

Night Reposition Function
